Mobile Cremation Equipment

Model	CA-200
Burning Rate	Average 100 kgs/hour
Primary Combustion Chamber	2000 Liters
Secondary Combustion Chimney	Yes
Feed Mode	Manual
Voltage	220V
Power	3.0 Kw
Fuel Type	Diesel Oil
Burner	Italy Original
Oil Consumption (Diesel Oil)	Average 53 kg/hour
Internal Dimensions	230 x 100 x 90cm (primary chamber)
External Dimensions	290 x 200 x 170cm (primary chamber)
Temperature Monitor	Yes
Oil Tank Capacity(if oil fuel)	500 Liters
Door Opening	90 x 90cm
Chimney Length	5.0 Meters
Chimney Type	Stainless Steel

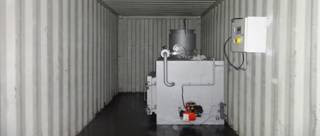

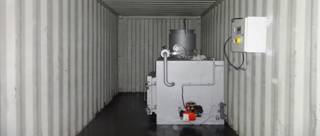

Equipment Gross Weight	9000 kgs(with container)
Operation Technical Specifications
Paimary Chamber Temperature	800℃–1000℃
Secondary Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Burning Efficiency	＞98%
Waste Lower Calorific Power	3000Kcal
