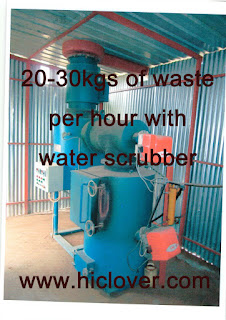

20-30kgs of waste per hour with water scrubber

Item

Specification

Model

YD-30C (customer made model)

Main Product List

Primary Combustion Chamber(Main body stainless steel)

Secondary Combustion Chamber(Main body stainless steel)

Mix-Combustion Chamber

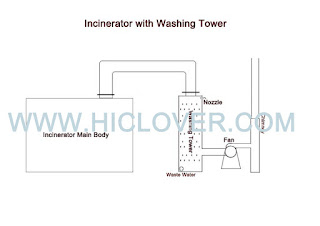

Wet Scrubber( Washing Tower)(Main body stainless steel)

Incinerator Control Case

Chimney:5.0Meters

*(upgrade to Stainless Steel, free cost)

Italy gas burner: 02 units

Oil Tank (if oil fuel): 100Liters

Model

YD-30C

Feed Capacity

Average 50 kgs per feeding

Burning Rate

Average 30 kgs per hour

Burning Time per Feed

2 hours

Voltage

220V/380V

Power

6 Kw

Fuel

Natural Gas

Burner

Italy Burner

Feed Mode

Manual

Fuel consumption (Oil)

10.2-20.0 Kgs/Hour

Fuel consumption (Gas)

12.2-24.0m3/Hour

External Dimensions

170 x 140 x 190cm (main body)

Internal Dimensions

55 x 55 x 85cm(Primary Chamber)

Waste combustion chamber

250Liters

Post Combustion Chamber

140Liters

Oil Tank Capacity

100 Liters

Door Opening

38 x 48cm

Chimney

5.0M

Gross Weight

3300kgs

Chamber Material

Refractory Concrete

Max. Heat Value

200,000Kcal/Hr.

Operation Technical Specifications

Solid Chamber temperature

800⁰C -1000⁰C

Gas Chamber temperature

1000⁰C -1200⁰C

Chamber Anti-Rate

1350⁰C

Residency time

2.0 Sec.

Burning efficiency

＞98%

Waste Lower Calorific Power

3000Kcal
