HICLOVER now offers spare parts including:
— Burners (diesel oil, LPG or natural gas)
— Element for burners
— Fire ropes
— Incinerator chamber maintenance materials
— Air Fan

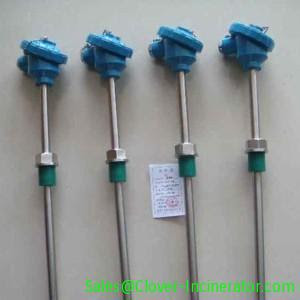

— Temperature element
— Smoke filter brick
— Control box
— Other parts
WWW.HICLOVER.COM｜Waste Incinerators ｜Auto Roll Air Filters
Nanjing Clover Medical Technology Co.,Ltd.
Tel: +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: sales@hiclover.com
Email: hicloversales@gmail.com
Website: www.hiclover.com
Email: sales@hiclover.com
Email: hicloversales@gmail.com
| Items/Model | TS10(PLC) | TS20(PLC) | TS30(PLC) | TS50(PLC) | TS100(PLC) |
| Burn Rate (Average) | 10 kg/hour | 20 kg/hour | 30 kg/hour | 50 kg/hour | 100 kg/hour |
| Feed Capacity(Average) | 20kg | 40kg | 60kg | 100kg | 200 kg |
| Control Mode | PLC | PLC | PLC | PLC | PLC |
| Combustion Chamber | 100L | 210L | 330L | 560L | 1200L |
| Internal Dimensions | 50x50x40cm | 65x65x50cm | 75x75x60cm | 100x80x70cm | 120x100x100cm |
| Secondary Chamber | 50L | 110L | 180L | 280L | 600L |
| Smoke Filter Chamber | Yes | Yes | Yes | Yes | Yes |
| Feed Mode | Manual | Manual | Manual | Manual | Manual |
| Voltage | 220V | 220V | 220V | 220V | 220V |
| Power | 0.5Kw | 0.5Kw | 0.5Kw | 0.7Kw | 0.7Kw |
| Oil Consumption (kg/hour) | 5.4–12.6 | 7.8–16.3 | 10.2–20 | 12.1–24 | 14–28 |
| Gas Consumption (m3/hour) | 6.2–11.4 | 8–15.7 | 9.8–20 | 9.9–26.1 | 10–32.2 |
| Temperature Monitor | Yes | Yes | Yes | Yes | Yes |
| Temperature Protection | Yes | Yes | Yes | Yes | Yes |
| Oil Tank | 100L | 100L | 100L | 100L | 200L |
| Feed Door | 30x30cm | 45x40cm | 55x50cm | 70x55cm | 80x60cm |
| Chimney | 3Meter | 3Meter | 5Meter | 5Meter | 10Meter |
| Chimney Type | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| 1st. Chamber Temperature | 800℃–1000℃ | 800℃–1000℃ | 800℃–1000℃ | 800℃–1000℃ | 800℃–1000℃ |
| 2nd. Chamber Temperature | 1000℃-1200℃ | 1000℃-1200℃ | 1000℃-1200℃ | 1000℃-1200℃ | 1000℃-1200℃ |
| Residency Time | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. |
| Gross Weight | 1500kg | 2200kg | 3000kg | 4500kg | 6000kg |
| External Dimensions | 140x90x120cm | 160x110x130cm | 175x120x140cm | 230x130x155cm | 260x150x180cm |
The minimum exit velocity of the emissions from the Chimney shall not be less than 10 meters/second.
The stack shall be insulated to maintain the maximum outlet temperature. The sampling platform and port for measurement of emissions shall be provided.
An audible and visible alarm shall be installed to warn the operator when the secondary temperature
An audible and visible alarm shall be installed to warn the operator when the secondary temperature
drops to below the required temperature. The following instruments may also be required:
A carbon monoxide and/or oxygen meter/recorder
A smoke density meter/recorder A gas flow meter/recorder
Any other instrument or measurement considered necessary
Incinerators shall be equipped with temperature recording devices which will keep a continuous record
A carbon monoxide and/or oxygen meter/recorder
A smoke density meter/recorder A gas flow meter/recorder
Any other instrument or measurement considered necessary
Incinerators shall be equipped with temperature recording devices which will keep a continuous record
of the temperatures in areas of interest such as the primary combustor, the air pollution control equipment, and the exhaust stack.
Due to the lack of existing standard in the host country, the contractor shall use the EPA Emissions Standard
Due to the lack of existing standard in the host country, the contractor shall use the EPA Emissions Standard
(or equivalent) for the designing parameters. Opacity of the smoke shall not exceed 20%.
The ash processing system shall involve stabilizing the ash product so that it can safely be land filled or used
The ash processing system shall involve stabilizing the ash product so that it can safely be land filled or used
in construction as fill material or construction blocks. Ash handling and processing shall be kept under roof
and indoors so that it is not offensive to the neighbors and also so that operations may be conducted all year
round. Volatile organic compounds in ash shall not be more than 0.01%. Wastewater from gas washing and
quenching of ashes shall be neutralized before being discharged.
